Drug characterization and testing are critical processes in ensuring the quality and efficacy of pharmaceutical products. The study of drug polymorphs has become an indispensable component of pharmaceutical research, development, and manufacturing. Drug polymorphs significantly influence drug solubility and bioavailability and are closely related to drug stability and therapeutic effectiveness. Powder X-ray diffraction (PXRD), a non-destructive analytical technique, is extensively employed in the identification and analysis of drug polymorphs due to its efficiency, accuracy, and sensitivity. PXRD provides detailed information regarding crystal structure through the measurement of diffraction patterns resulting from the interaction of X-rays with drug powder samples. This article will explore the crucial role of PXRD in drug polymorph identification. Additionally, the fundamental principles of PXRD and its applications in drug polymorph analysis will be discussed.
What is a Drug Polymorph?
Drug polymorphs refer to the various ways in which drug molecules arrange themselves in the solid state, typically manifesting as distinct crystal structures or crystal lattices. Each polymorph exhibits unique physical and chemical properties that directly impact the drug's performance and therapeutic efficacy. The phenomenon of polymorphism allows a single chemical compound to exist in multiple crystalline forms. Different polymorphs can exhibit variations in properties such as solubility, melting point, and hardness, all of which can influence drug absorption, metabolism, and overall therapeutic effectiveness. Consequently, the selection of an appropriate polymorph is crucial for optimizing a drug's therapeutic benefits and stability.
Why are Drug Polymorphs Important?
The selection of an appropriate drug polymorph can influence its dissolution rate, bioavailability, stability, and shelf life. Different polymorphs can result in significantly different absorption rates within the body, which can affect a drug's onset of action and overall therapeutic effectiveness. For instance, certain polymorphs exhibit rapid dissolution, leading to faster therapeutic effects, while others may demonstrate enhanced stability, making them suitable for extended-release formulations.
Polymorphs and Solubility
Solubility is a critical factor affecting a drug's bioavailability, which refers to the extent and rate at which the active drug is absorbed and becomes available at the site of action. Solubility is the initial step in this process; drugs that exhibit rapid dissolution in bodily fluids are absorbed more quickly into the bloodstream, directly influencing their onset of action and therapeutic intensity. Different drug polymorphs exhibit varying degrees of solubility due to differences in molecular packing. Polymorphs with looser molecular arrangements tend to exhibit higher aqueous solubility, facilitating rapid drug release and faster therapeutic effects. Conversely, polymorphs with tightly packed molecules dissolve more slowly, potentially leading to delayed or reduced drug effectiveness.
Polymorphs and Stability
Drug stability refers to its ability to maintain its chemical and physical integrity during storage and transportation. Polymorphs play a significant role in determining a drug's stability. Different polymorphs respond differently to external environmental factors such as temperature, humidity, and light, which can influence the drug's shelf life and storage requirements. Certain polymorphs are more susceptible to chemical degradation under conditions of high heat or humidity, potentially resulting in a loss of potency. For example, antibiotic drugs may lose their antimicrobial activity if their polymorph changes during storage. Furthermore, physical stress during production, such as grinding or tablet compression, can also induce undesired polymorphic transformations, leading to product instability and inconsistent quality.
Polymorphs and Bioavailability
Bioavailability is a measure of the extent to which a drug reaches the systemic circulation and is available for therapeutic action. The polymorph of a drug directly influences both the rate and extent of its absorption. Polymorphs with higher solubility are typically absorbed more quickly, resulting in higher bioavailability. In contrast, polymorphs with lower solubility may exhibit inadequate dissolution in the body, which can impede absorption and decrease the drug's effectiveness. Differences in crystal structure affect the interactions between drug molecules and bodily fluids, thereby influencing absorption rates. For example, certain polymorphs, due to slower dissolution rates, may have a longer residence time in the gastrointestinal tract, leading to incomplete dissolution and reduced bioavailability. This phenomenon is often utilized in extended-release formulations, where different polymorphs are employed to modulate drug release rates, ensuring sustained therapeutic effects over an extended period.
The Principles of Powder X-Ray Diffraction (PXRD)
PXRD is a widely used and essential technique for the identification and characterization of polymorphs. As a key technique in crystal structure analysis, PXRD provides precise information regarding different polymorphic forms. It is a non-destructive method that operates by analyzing the interaction between X-rays and crystalline materials. When a monochromatic X-ray beam is directed at a crystal, it is scattered by the electron clouds of atoms, producing diffraction at specific angles. This diffraction pattern serves as a unique "fingerprint" for each crystal structure, enabling accurate identification.
A significant advantage of PXRD is its capacity to analyze complex multi-component solid formulations. Even in the presence of multiple ingredients, each component maintains a distinct PXRD pattern, allowing for the differentiation of active pharmaceutical ingredients (APIs) and excipients. Consequently, PXRD provides a reliable foundation for qualitative polymorphic analysis. By examining PXRD patterns, researchers can identify polymorphic forms, assess purity, and monitor structural changes. This is crucial in drug development and quality control, as polymorphic variations can directly affect solubility, stability, and bioavailability. The efficiency and accuracy of PXRD render it an indispensable tool for pharmaceutical polymorph characterization, ensuring drug consistency and performance.
Please read our article Overview of Powder X-ray Diffraction (PXRD) to get more information.
Figure 1. Powder X-ray diffraction (PXRD) pattern of amorphous carbamazepine (CBZ) prepared by melt using a conventional X-ray source. (Rodríguez I, et al., 2020)

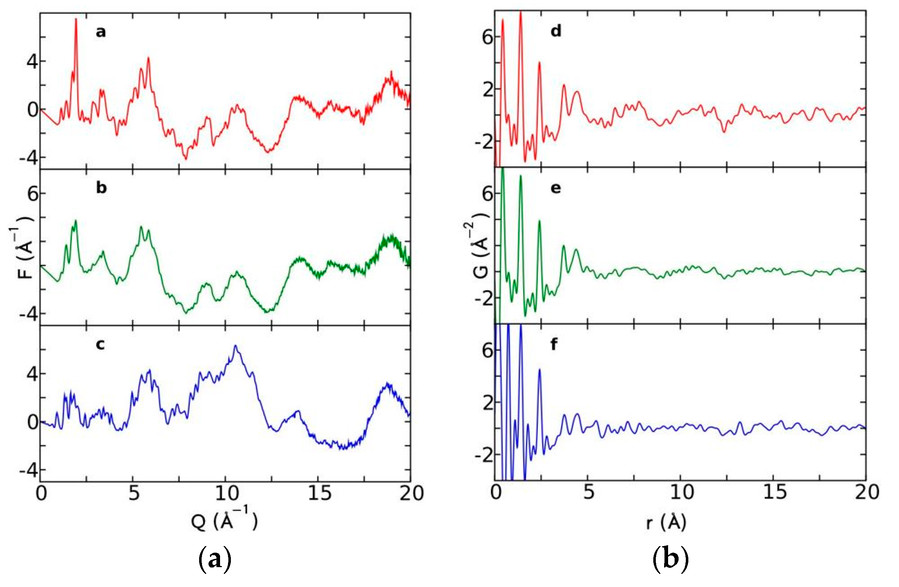

Figure 2. Diffraction patterns and pair distribution functions (PDFs) of carbamazepine samples. (a) Total scattering diffraction patterns and (b) PDFs of different carbamazepine (CBZ) forms: (a, d) crystalline CBZ form III, (b, e) amorphous CBZ from melt, and (c, f) crystalline CBZ form I. (Rodríguez I, et al., 2020)
How PXRD Works for Drug Polymorph Identification
Sample Preparation
The preparation of drug samples for PXRD analysis involves comminuting the sample into a fine powder, which is then exposed to X-rays. This powder is essential because PXRD analyzes the diffraction pattern resulting from the interaction of X-rays with the crystal lattice. A finer powder facilitates the generation of more accurate and reproducible diffraction patterns.
Data Collection and Interpretation
Following sample preparation, the drug sample is placed in the PXRD instrument, where X-rays are directed at the powder. The X-rays interact with the crystal lattice, scattering at specific angles determined by the atomic arrangement of the molecules within the crystal. The resulting diffraction pattern is unique to the polymorph of the drug. Analysis of this diffraction pattern enables researchers to identify the drug's crystal structure, differentiate between various polymorphs, and obtain critical data regarding its physical properties.
Advantages of XRD Powder Diffraction in Drug Polymorph Identification
Compared to other characterization techniques, such as Differential Scanning Calorimetry (DSC) or Infrared Spectroscopy (IR), PXRD offers several key advantages in polymorph identification:
- High Resolution and Sensitivity: PXRD can distinguish between highly similar polymorphs and provides precise crystal structure information, making it particularly effective in the quantitative analysis of polymorphic mixtures.
- Non-Destructive Analysis: As PXRD does not alter or destroy the sample, it is ideally suited for the analysis of solid-state drugs, particularly in assessing the crystalline form present in pharmaceutical formulations.
- Broad Applicability: PXRD provides reliable results across various research and quality control stages, whether analyzing powdered drugs, tablet formulations, or other solid samples.
- Accurate Crystal Structure Characterization: By generating unique diffraction patterns, PXRD provides detailed information on drug polymorphs, aiding pharmaceutical companies in the selection of optimal polymorphs to enhance drug performance.
- Combination with Other Techniques: PXRD can be integrated with thermal analysis methods such as DSC and Thermogravimetric Analysis (TGA) to provide a more comprehensive understanding of polymorphic properties, thereby optimizing drug development and manufacturing processes.
Applications of Powder XRD in Drug Development
Polymorph Screening and Confirmation
In early-stage drug development, research teams are required to identify the optimal polymorph and confirm its structure. Different polymorphs can exhibit significant variations in solubility and stability, making the selection of the appropriate form critical for drug efficacy.
- Polymorph Screening: PXRD analysis of diffraction patterns assists researchers in identifying multiple potential polymorphs and selecting the most suitable one, such as those with enhanced solubility or stability.
- Polymorph Confirmation: The "fingerprint" characteristic of PXRD allows for comparison between sample diffraction patterns and reference standards in databases, ensuring that the identified polymorph corresponds to the expected form, thus preventing misidentification or omission.
Polymorph Monitoring in Manufacturing
During production, alterations in processing conditions, such as temperature, humidity, and pressure, can induce polymorphic transitions, affecting drug quality and consistency. Real-time monitoring of polymorphic states is essential for maintaining product integrity.
- PXRD in Process Control: PXRD is utilized on production lines for the rapid verification that the drug maintains the intended polymorph, preventing unexpected polymorphic transformations. It also monitors potential polymorphic changes resulting from mechanical stress or environmental factors during tablet compression and coating.
- Issue Detection and Process Optimization: In the event of polymorphic deviations, PXRD facilitates rapid analysis of the issue and adjustment of processing parameters by production teams, ensuring that the final product adheres to the desired specifications.
Quantitative Analysis of Polymorphic Mixtures
Certain drugs exist in multiple polymorphic forms, necessitating quantitative analysis to ensure stability and efficacy.
- Quantitative Determination: PXRD quantifies the relative content of each polymorph in a sample by analyzing peak intensities and areas in diffraction patterns. This is particularly crucial for combination formulations and extended-release drugs.
- Formulation Homogeneity Analysis: PXRD verifies the uniform distribution of polymorphs within the formulation, preventing variations in drug efficacy caused by inconsistent polymorph composition.
Polymorphic Stability in Storage and Transportation
Environmental factors, including temperature and humidity, can induce polymorphic transitions during storage and transportation. For instance, some drugs may transition from an amorphous state to a crystalline form or undergo transformations between polymorphs under conditions of high humidity or temperature.
- PXRD in Stability Monitoring: Regular PXRD analysis of stored samples enables early detection of polymorphic changes, allowing manufacturers to implement preventive measures, such as adjusting packaging materials or optimizing storage conditions.
- Shelf-Life Testing: PXRD supports long-term stability studies aimed at determining appropriate shelf life and optimal storage conditions.
Detection and Control of Polymorphic Impurities
Polymorphic impurities present a significant challenge in drug purity and quality control. Even trace amounts of undesired polymorphs can impact bioavailability or elicit adverse effects, necessitating stringent impurity control throughout drug development and manufacturing.
- PXRD in Impurity Detection: PXRD demonstrates high sensitivity in detecting polymorphic impurities and can identify impurity types through comparison of diffraction patterns with reference standards.
- Impurity Control During Production: The real-time monitoring capabilities of PXRD enable manufacturers to track impurity formation during production and promptly adjust processes to minimize contamination.
Regulatory Support for New Drug Applications
Regulatory agencies mandate comprehensive polymorph characterization data for new drug approval. Pharmaceutical companies are required to provide detailed PXRD reports to demonstrate the stability and safety of the selected polymorph.
- PXRD in Drug Registration: PXRD analysis generates critical data, including crystal structure, purity, impurity levels, and stability testing results. These data are essential for regulatory submissions and serve as key documentation for drug approval.
- Intellectual Property Protection: Given that different polymorphs can significantly affect drug performance, PXRD data can be utilized to obtain polymorph patents, providing pharmaceutical companies with a competitive market advantage.
In conclusion, X-ray Powder Diffraction (XRRD) plays a crucial role in drug polymorph identification, ensuring optimal stability, solubility, and bioavailability. As an essential technique in pharmaceutical research and quality control, PXRD provides reliable data for drug development and regulatory approval. At Creative Biostructure, we offer powder X-ray diffraction services tailored to your research and manufacturing needs. Contact us to explore our PXRD services and discover how we can support your drug development process.
References
- Namatame Y, Sato H. Evaluation of polymorphic forms by powder X-ray diffraction and thermal analysis methods. Rigaku J, 2013, 29(3): 8-15.
- Rodríguez I, Gautam R, Tinoco A D. Using X-ray diffraction techniques for biomimetic drug development, formulation, and polymorphic characterization. Biomimetics. 2020, 6(1): 1. https://doi.org/10.3390/biomimetics6010001
- Chambi J T, Fandaruff C, Cuffini S L. Identification and quantification techniques of polymorphic forms-A review. Journal of Pharmaceutical and Biomedical Analysis. 2024, 242: 116038. https://doi.org/10.1016/j.jpba.2024.116038
